IRIDIUM (Ir) COATED PRODUCTS
Substrata offers a full suite of iridium coated silicon and glass at affordable prices.
All coatings are deposited under vacuum using electron beam evaporation. Iridium is often used as a protective coating in extreme conditions due to its high resistance to corrosion and it exhibits the highest resistance to corrosion in molten oxides among metals. Iridium is a promising candidate for a wide range of applications due to its high melting point, low oxygen permeability, high chemical stability, and superior oxidation resistance.
We use a thin titanium adhesion layer (2-7 nm) between the substrate and iridium coating. This adhesion layer is optional. Custom sizes and materials can also be fabricated to meet your needs.
IRIDIUM (Ir) COATED SILICON
P-TYPE <100>, SSP, PRIME GRADE
High quality substrates coated with 1000 Å (100 nm) of iridium. All coatings include a 30 Å titanium adhesion layer between the substrate surface and the iridium coating.
| Product # | Description | Coating | Thickness | Adhesion | Unit | Lead Time/Stock | Price (USD) | Order |
|---|---|---|---|---|---|---|---|---|
| 4WIR-01000-Q3 | Iridium Coated 4-inch Silicon Wafers Ir-1000 Å | 100 mm dia. x 0.525 mm thick | Iridium (99.9%) | Ir-1000 Å | Ti-30 Å | 3/pkg | 5 days | $995.00 |
| Description | Thickness | Price (USD) | Order | Coating | Adhesion | Unit | Lead Time/Stock | Product # |
|---|---|---|---|---|---|---|---|---|
| Iridium Coated 4-inch Silicon Wafers Ir-1000 Å | 100 mm dia. x 0.525 mm thick | Ir-1000 Å | $995.00 | Iridium (99.9%) | Ti-30 Å | 3/pkg | 5 days | 4WIR-01000-Q3 |
IRIDIUM (Ir) COATED GLASS
BOROSILICATE, ULTRA FLAT
High quality substrates coated with 1000 Å (100 nm) of iridium. All coatings include a 30 Å titanium adhesion layer between the substrate surface and the iridium coating.
| Product # | Description | Coating | Thickness | Adhesion | Unit | Lead Time/Stock | Price (USD) | Order |
|---|---|---|---|---|---|---|---|---|

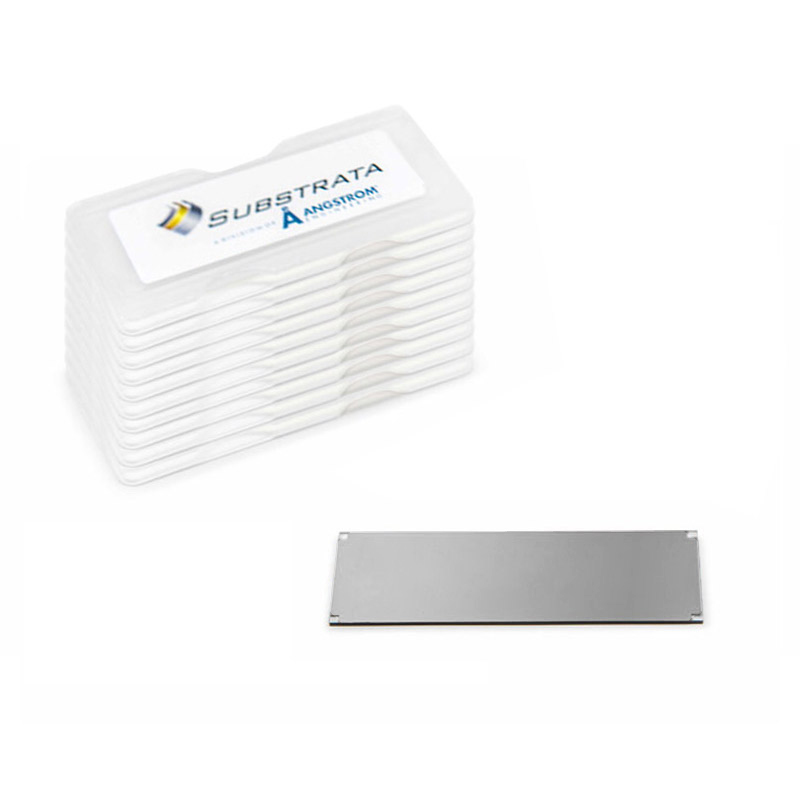

| SSIR-01000-Q10 | Iridium Coated Microscope Slides Ir-1000 Å | 25 mm x 75 mm x 1 mm | Iridium (99.9%) | Ir-1000 Å | Ti-30 Å | 10/pkg | 5 days | $1,425.00 |
| Description | Thickness | Price (USD) | Order | Coating | Adhesion | Unit | Lead Time/Stock | Product # |
|---|---|---|---|---|---|---|---|---|
| Iridium Coated Microscope Slides Ir-1000 Å | 25 mm x 75 mm x 1 mm | Ir-1000 Å | $1,425.00 | Iridium (99.9%) | Ti-30 Å | 10/pkg | 5 days | SSIR-01000-Q10 |
Looking for custom substrates or coatings?
We're here to help! Please fill out our Request a Quote form.
