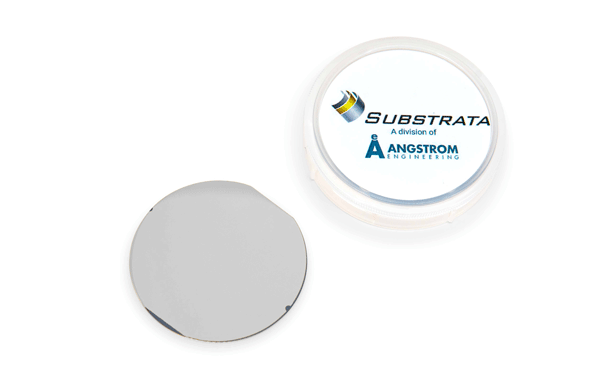

SILVER (Ag) COATED SILICON WAFERS
Substrate
Silicon Wafer (Prime Grade)
- Type/Dopant: P/Boron
- Orientation: <100>
- Resistivity: 1-50 ohm-cm
- Front Surface: Polished
- Back Surface: Etched
Coating
Silver, Ag
- Purity: 99.99%
- Deposition Technique: Electron Beam
- Deposition Rate: 1-2 Å/sec
- Vapor Pressure: 10-6 Torr
Substrata offers a full suite of silver coated silicon wafers at affordable prices.
All coatings are deposited under vacuum using electron beam evaporation. Applications include reflectometry, nanotechnology, and AFM applications.
We use a thin titanium adhesion layer between the silicon and silver coating. This adhesion layer is optional and can also be replaced with chromium upon request. All wafers are packed in a clean environment and shipped in individual wafer carriers.
For General Inquiries:
Popular Items
High quality substrates coated with 500 Å (50 nm) of silver. All coatings include a 50 Å titanium adhesion layer between the substrate surface and the silver coating.
| Product # | Description | Coating | Thickness | Adhesion | Unit | Lead Time/Stock | Price (USD) | Order |
|---|---|---|---|---|---|---|---|---|
| 4WAG500-Q3 | Silver Coated 4-inch Silicon Wafers Ag-500 Å | 100 mm dia. x 0.525 mm thick | Silver (99.99%) | Ag-500 Å | Ti-50 Å | 3/pkg | 5 days | $536.00 |
| Description | Thickness | Price (USD) | Order | Coating | Adhesion | Unit | Lead Time/Stock | Product # |
|---|---|---|---|---|---|---|---|---|
| Silver Coated 4-inch Silicon Wafers Ag-500 Å | 100 mm dia. x 0.525 mm thick | Ag-500 Å | $536.00 | Silver (99.99%) | Ti-50 Å | 3/pkg | 5 days | 4WAG500-Q3 |
Packs
Silver Coated 4-inch Silicon Wafers: 100 mm diameter x 0.525 mm thick, Prime Grade
These items are fabricated upon order and may require up to 5 business days to ship. All items are sold in packs of 3 wafers.
Chromium (Cr) can also be used as an adhesion layer upon request.
| Product # | Description | Coating | Thickness | Adhesion | Unit | Lead Time/Stock | Price (USD) | Order |
|---|---|---|---|---|---|---|---|---|
| 4WAG100-Q3 | Silver Coated 4-inch Silicon Wafers Ag-100 Å | 100 mm dia. x 0.525 mm thick | Silver (99.99%) | Ag-100 Å | Ti-20 Å | 3/pkg | 5 days | $523.00 | |
| 4WAG1000-Q3 | Silver Coated 4-inch Silicon Wafers Ag-1000 Å | 100 mm dia. x 0.525 mm thick | Silver (99.99%) | Ag-1000 Å | Ti-50 Å | 3/pkg | 5 days | $551.00 | |
| 4WAG5000-Q3 | Silver Coated 4-inch Silicon Wafers Ag-5000 Å | 100 mm dia. x 0.525 mm thick | Silver (99.99%) | Ag-5000 Å | Ti-75 Å | 3/pkg | 5 days | $677.00 |
| Description | Thickness | Price (USD) | Order | Coating | Adhesion | Unit | Lead Time/Stock | Product # |
|---|---|---|---|---|---|---|---|---|
| Silver Coated 4-inch Silicon Wafers Ag-100 Å | 100 mm dia. x 0.525 mm thick | Ag-100 Å | $523.00 | Silver (99.99%) | Ti-20 Å | 3/pkg | 5 days | 4WAG100-Q3 | |
| Silver Coated 4-inch Silicon Wafers Ag-1000 Å | 100 mm dia. x 0.525 mm thick | Ag-1000 Å | $551.00 | Silver (99.99%) | Ti-50 Å | 3/pkg | 5 days | 4WAG1000-Q3 | |
| Silver Coated 4-inch Silicon Wafers Ag-5000 Å | 100 mm dia. x 0.525 mm thick | Ag-5000 Å | $677.00 | Silver (99.99%) | Ti-75 Å | 3/pkg | 5 days | 4WAG5000-Q3 |
Packs
Silver Coated 3-inch Silicon Wafers: 76 mm diameter x 0.381 mm thick, Prime Grade
These items are fabricated upon order and may require up to 5 business days to ship. All items are sold in packs of 5 wafers.
Chromium (Cr) can also be used as an adhesion layer upon request.
| Product # | Description | Coating | Thickness | Adhesion | Unit | Lead Time/Stock | Price (USD) | Order |
|---|---|---|---|---|---|---|---|---|
| 3WAG100-Q5 | Silver Coated 3-inch Silicon Wafers Ag-100 Å | 76 mm dia. x 0.381 mm thick | Silver (99.99%) | Ag-100 Å | Ti-20 Å | 5/pkg | 5 days | $677.00 | |
| 3WAG1000-Q5 | Silver Coated 3-inch Silicon Wafers Ag-1000 Å | 76 mm dia. x 0.381 mm thick | Silver (99.99%) | Ag-1000 Å | Ti-50 Å | 5/pkg | 5 days | $761.00 | |
| 3WAG5000-Q5 | Silver Coated 3-inch Silicon Wafers Ag-5000 Å | 76 mm dia. x 0.381 mm thick | Silver (99.99%) | Ag-5000 Å | Ti-75 Å | 5/pkg | 5 days | $1,045.00 |
| Description | Thickness | Price (USD) | Order | Coating | Adhesion | Unit | Lead Time/Stock | Product # |
|---|---|---|---|---|---|---|---|---|
| Silver Coated 3-inch Silicon Wafers Ag-100 Å | 76 mm dia. x 0.381 mm thick | Ag-100 Å | $677.00 | Silver (99.99%) | Ti-20 Å | 5/pkg | 5 days | 3WAG100-Q5 | |
| Silver Coated 3-inch Silicon Wafers Ag-1000 Å | 76 mm dia. x 0.381 mm thick | Ag-1000 Å | $761.00 | Silver (99.99%) | Ti-50 Å | 5/pkg | 5 days | 3WAG1000-Q5 | |
| Silver Coated 3-inch Silicon Wafers Ag-5000 Å | 76 mm dia. x 0.381 mm thick | Ag-5000 Å | $1,045.00 | Silver (99.99%) | Ti-75 Å | 5/pkg | 5 days | 3WAG5000-Q5 |
Packs
Silver Coated 2-inch Silicon Wafers: 50 mm diameter x 0.279 mm thick, Prime Grade
These items are fabricated upon order and may require up to 5 business days to ship. All items are sold in packs of 9 wafers.
Chromium (Cr) can also be used as an adhesion layer upon request.
| Product # | Description | Coating | Thickness | Adhesion | Unit | Lead Time/Stock | Price (USD) | Order |
|---|---|---|---|---|---|---|---|---|
| 2WAG100-Q9 | Silver Coated 2-inch Silicon Wafers Ag-100 Å | 50 mm dia. x 0.279 mm thick | Silver (99.99%) | Ag-100 Å | Ti-20 Å | 9/pkg | 5 days | $649.00 | |
| 2WAG500-Q9 | Silver Coated 2-inch Silicon Wafers Ag-500 Å | 50 mm dia. x 0.279 mm thick | Silver (99.99%) | Ag-500 Å | Ti-50 Å | 9/pkg | 5 days | $677.00 | |
| 2WAG1000-Q9 | Silver Coated 2-inch Silicon Wafers Ag-1000 Å | 50 mm dia. x 0.279 mm thick | Silver (99.99%) | Ag-1000 Å | Ti-50 Å | 9/pkg | 5 days | $733.00 | |
| 2WAG5000-Q9 | Silver Coated 2-inch Silicon Wafers Ag-5000 Å | 50 mm dia. x 0.279 mm thick | Silver (99.99%) | Ag-5000 Å | Ti-75 Å | 9/pkg | 5 days | $1,031.00 |
| Description | Thickness | Price (USD) | Order | Coating | Adhesion | Unit | Lead Time/Stock | Product # |
|---|---|---|---|---|---|---|---|---|
| Silver Coated 2-inch Silicon Wafers Ag-100 Å | 50 mm dia. x 0.279 mm thick | Ag-100 Å | $649.00 | Silver (99.99%) | Ti-20 Å | 9/pkg | 5 days | 2WAG100-Q9 | |
| Silver Coated 2-inch Silicon Wafers Ag-500 Å | 50 mm dia. x 0.279 mm thick | Ag-500 Å | $677.00 | Silver (99.99%) | Ti-50 Å | 9/pkg | 5 days | 2WAG500-Q9 | |
| Silver Coated 2-inch Silicon Wafers Ag-1000 Å | 50 mm dia. x 0.279 mm thick | Ag-1000 Å | $733.00 | Silver (99.99%) | Ti-50 Å | 9/pkg | 5 days | 2WAG1000-Q9 | |
| Silver Coated 2-inch Silicon Wafers Ag-5000 Å | 50 mm dia. x 0.279 mm thick | Ag-5000 Å | $1,031.00 | Silver (99.99%) | Ti-75 Å | 9/pkg | 5 days | 2WAG5000-Q9 |
Looking for custom substrates or coatings?
We're here to help! Please fill out our Request a Quote form.
