Our team of experts works alongside the client to design thin film solutions for even the most challenging applications.

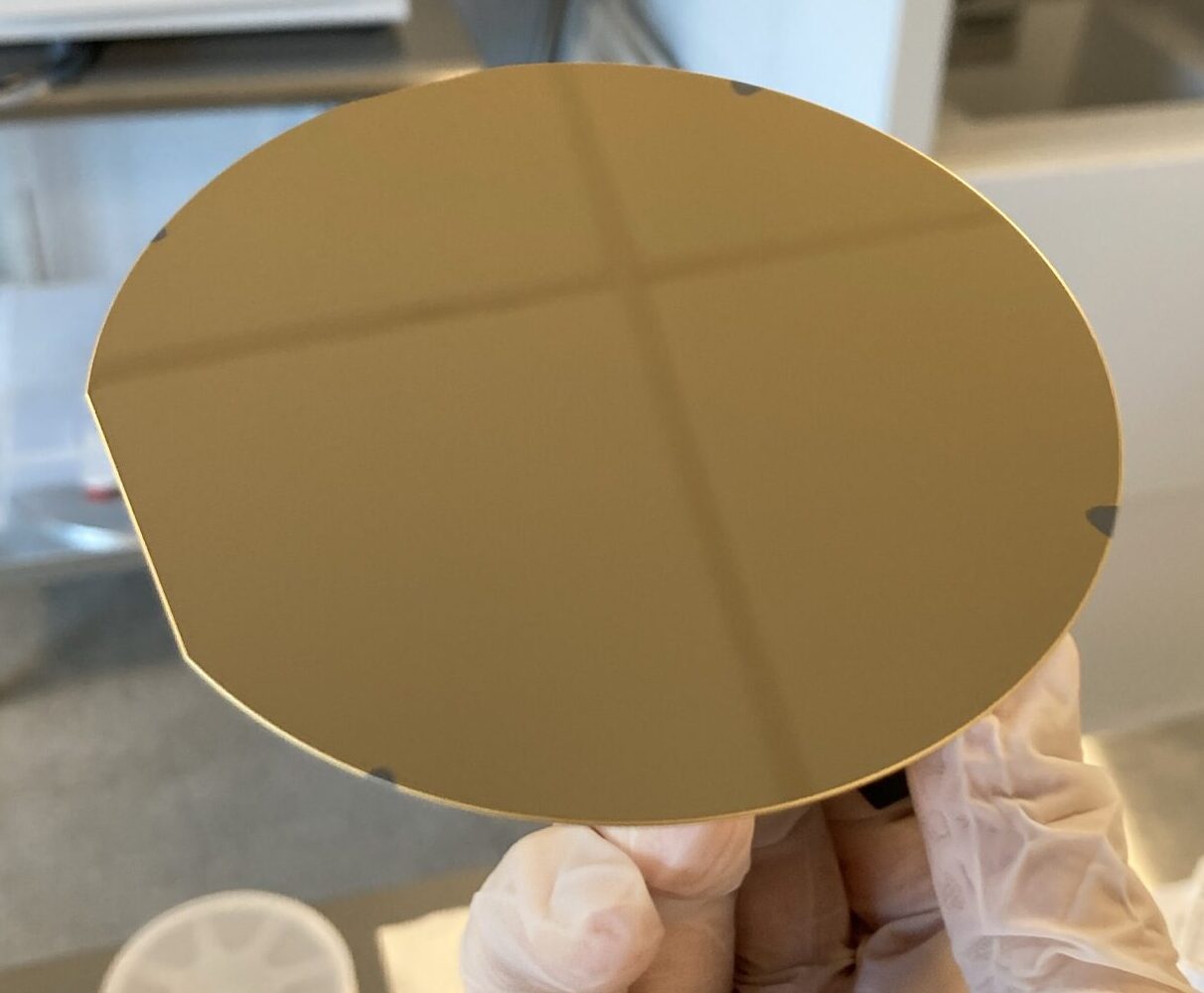

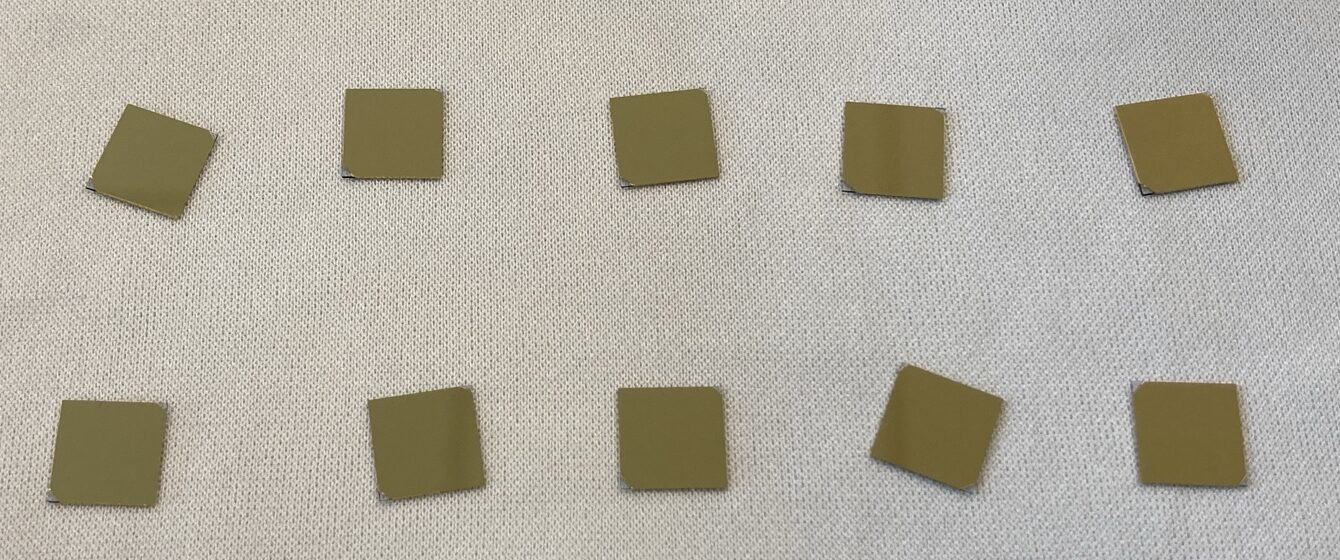

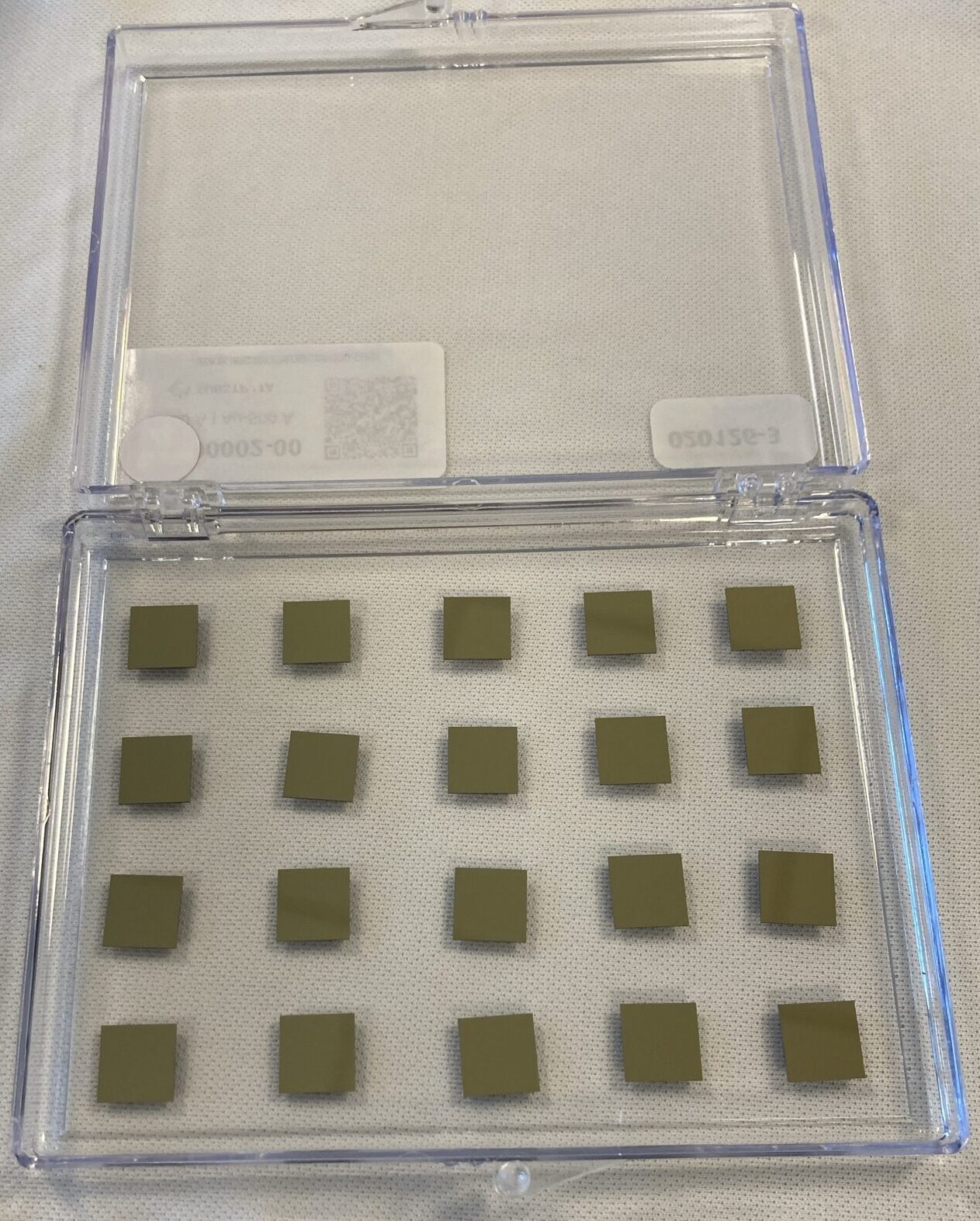

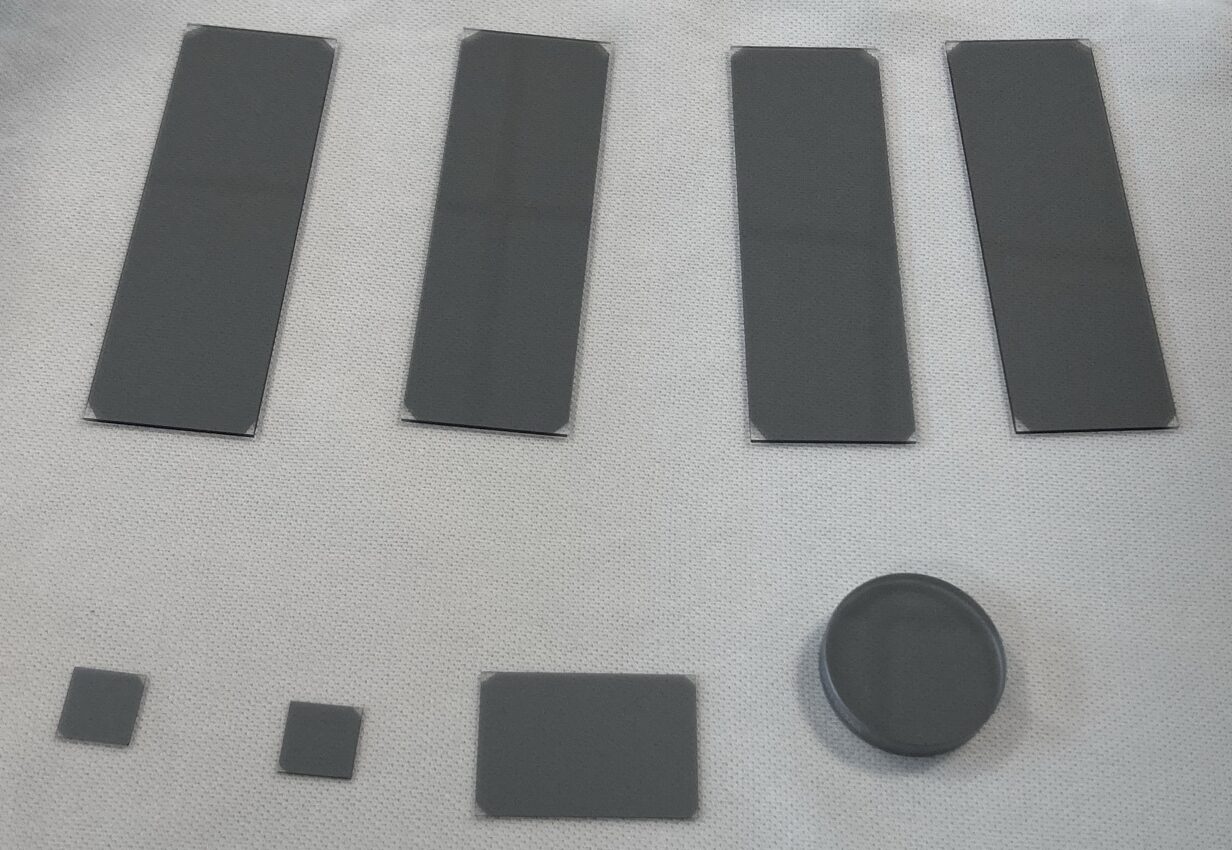

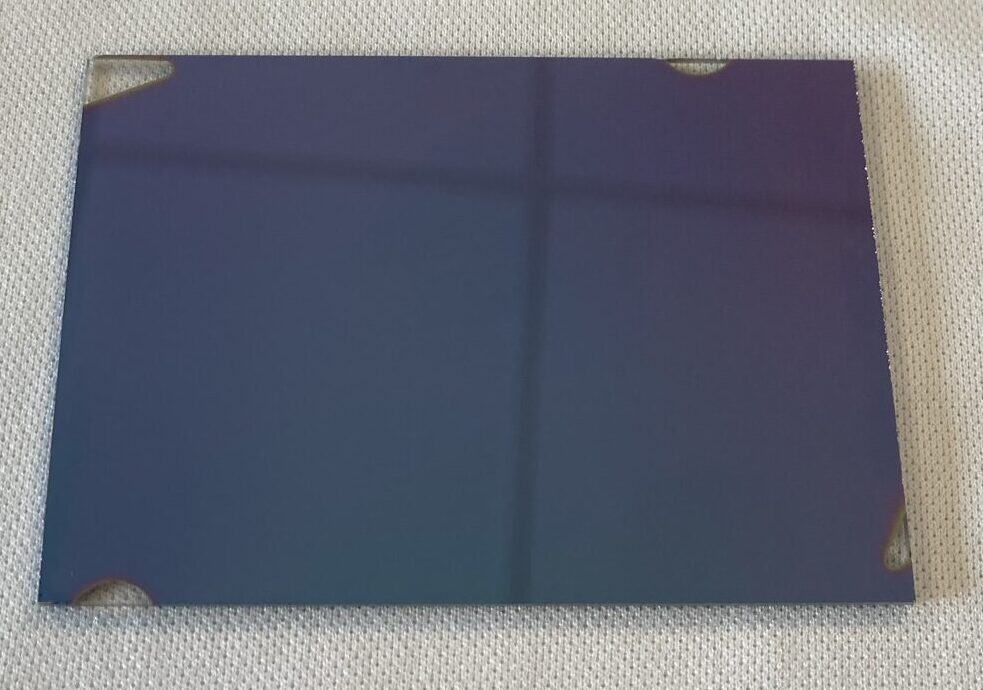

We fabricate custom patterned films including metals, semiconductors, transparent conductors, and optical coatings.
We offer a complete suite of analytical tools including SEM, EDX/Elemental Mapping, AFM, Ellipsometry and Large Area 2D / 3D Profilometry.
Why Work With Substrata Thin Film Solutions?
Highly Qualified Staff • High Purity Materials • Consistent Output
Responsive Team, call or email anytime • 24-Hour Response Time – Guaranteed • Fast turn-around time
