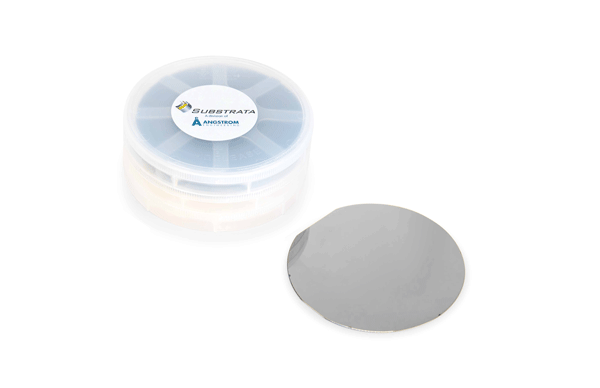

Silver Coated 4-inch Silicon Wafer (100 mm diameter) | Ag-500 Å | 3/pkg

$510.00

  • Substrate: Prime Grade 4-inch Silicon Wafers (100 mm dia. x 0.525 mm thick, P-Type <100>, SSP)
  • Adhesion Layer: Titanium (50 Å)
  • Deposition Material: Silver (99.99%)
  • Silver Thickness: 500 Å
  • Pack Size: 3/pkg
  • Lead Time: 1 Week
  • Coating Area: Single Side (polished)

Description

Our silver (Ag) material is 99.99% pure and is deposited onto p-type <100> silicon (Prime grade) using electron beam evaporation. We use a thin 2-7 nm layer of titanium (99.99%) as an adhesion promoter for all our silver coatings. All substrates are pre-cleaned using an ion source for quality assurance.

At Angstrom Engineering we take pride in offering high quality Substrata products and services at affordable prices.

Questions? Please email us at coatings@angstromengineering.com or call our toll free line at 1 519.894.4441.
