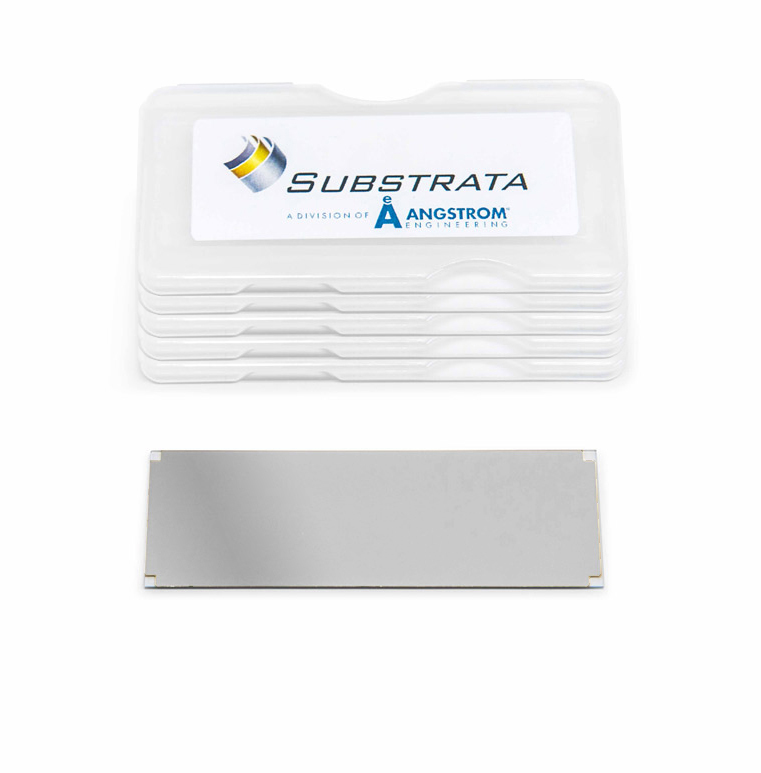

Platinum Coated Microscope Slides, 25 mm x 75 mm x 1 mm | 1000 Å Pt | 5/pkg

$510.00 USD

  • SubstrateBOROFLOAT® 33 (NEXTERION® Glass B) Glass Microscope Slide
  • Dimensions: 25 mm W x 75 mm L x 1 mm H
  • Adhesion Layer: Titanium (50 Å)
  • Deposition Material: Platinum (99.99 %)
  • Platinum Thickness: 1000 Å
  • Pack Size: 5/pkg
  • Coating Area: Single Side
SKU: SSPT-01000-Q5 Category:

Our platinum (Pt) material is 99.99 % pure and is deposited onto borosilicate glass microscope slides (BOROFLOAT® 33) using electron beam evaporation. We use a thin 2-7 nm layer of titanium (99.99 %) as an adhesion promoter for all our platinum coatings. All substrates are pre-cleaned using an ion source for quality assurance.



Glass Specifications:
BOROFLOAT® 33 (NEXTERION® Glass B)
• Type: Borosilicate glass
• Dimensions: 25 mm W x 75 mm L x 1 mm H
• Tolerance: ± 0.1 mm
• Density: 2.25 g/cc
• Flatness: ≤ 50 µm
• Roughness: ≤ 1 nm RMS



Coating Specifications:
• Adhesion Layer: 50 Å titanium (Ti)
• Top Layer: 1000 Å platinum (Pt)
• Purity: 99.99 %
• Optical Performance: View report (PDF)

Coating Area: Single side - laser marked with a "G" to indicate coated side

At Angstrom Engineering we take pride in offering high quality Substrata products and services at affordable prices.

Questions? Please email us at coatings@angstromengineering.com or call our toll free line at 1 519.894.4441.
