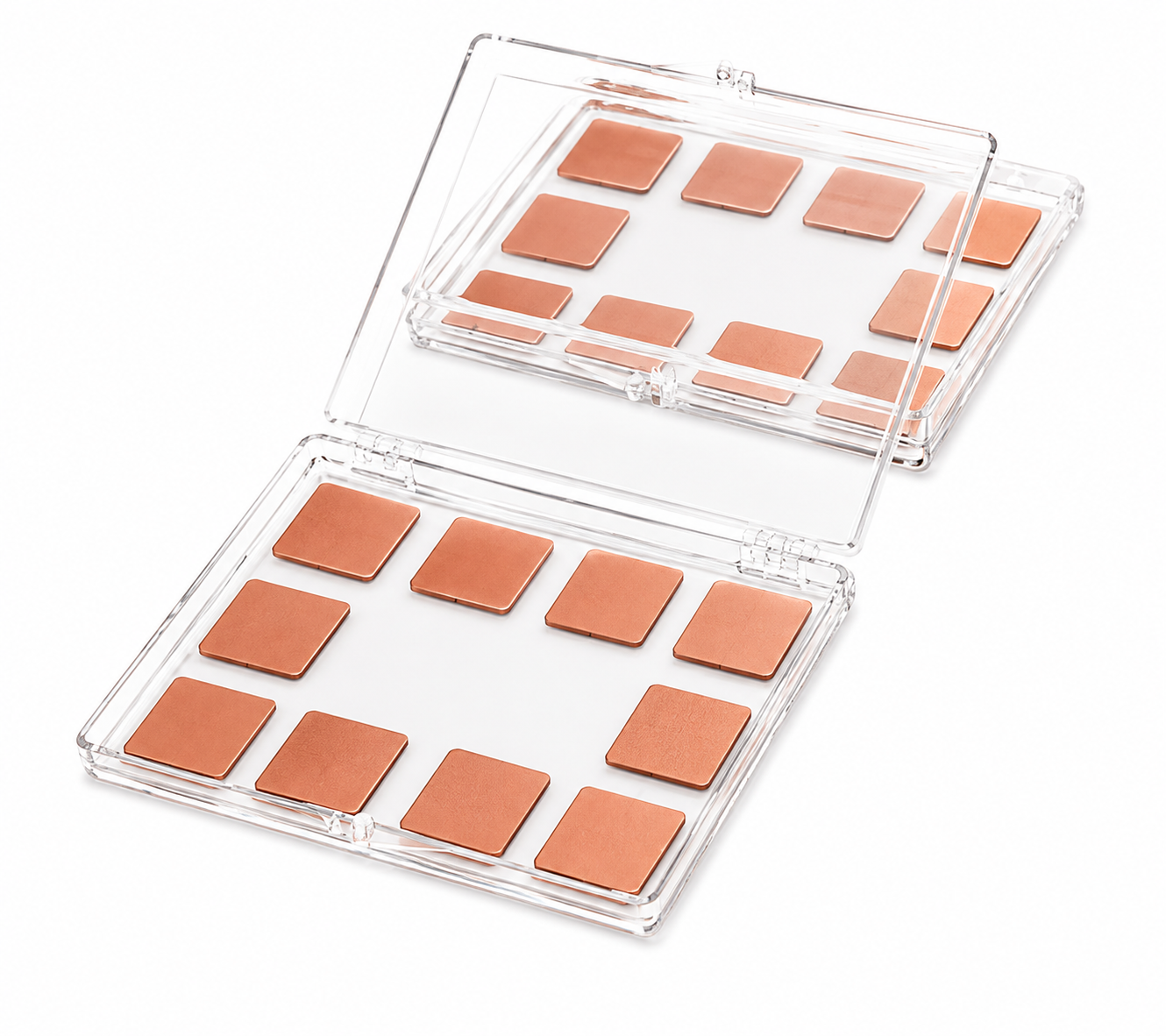

Copper Coated Glass Coverslips, 22 mm x 22 mm Square | 1000 Å Cu | 20/pkg
$845.00 USD
- Substrate: Borosilicate Glass Coverslip, 22 mm x 22 mm x 0.2 mm
- Adhesion Layer: Titanium (30 Å)
- Deposition Material: Copper (99.9999 %)
- Aluminum Thickness: 1000 Å
- Pack Size: 20/pkg
- Coating Area: Single Side
Our copper (Cu) material is 99.9999 % pure and is deposited onto borosilicate glass coverslips using electron beam evaporation. We use a thin 2-7 nm layer of titanium (99.99 %) as an adhesion promoter for all our copper coatings. All substrates are pre-cleaned using an ion source for quality assurance.
At Angstrom Engineering we take pride in offering high quality Substrata products and services at affordable prices.
Questions? Please email us at [email protected] or call our toll free line at 1 519.894.4441.
COVERSLIP REMOVAL INSTRUCTIONS:
For safely removing Substrata coverslip products from the Gel-Pak® packaging, please review the below video.
The glass coverslips are extremely delicate and must be handled with care to avoid cracking them. Patience is critical to this process.
