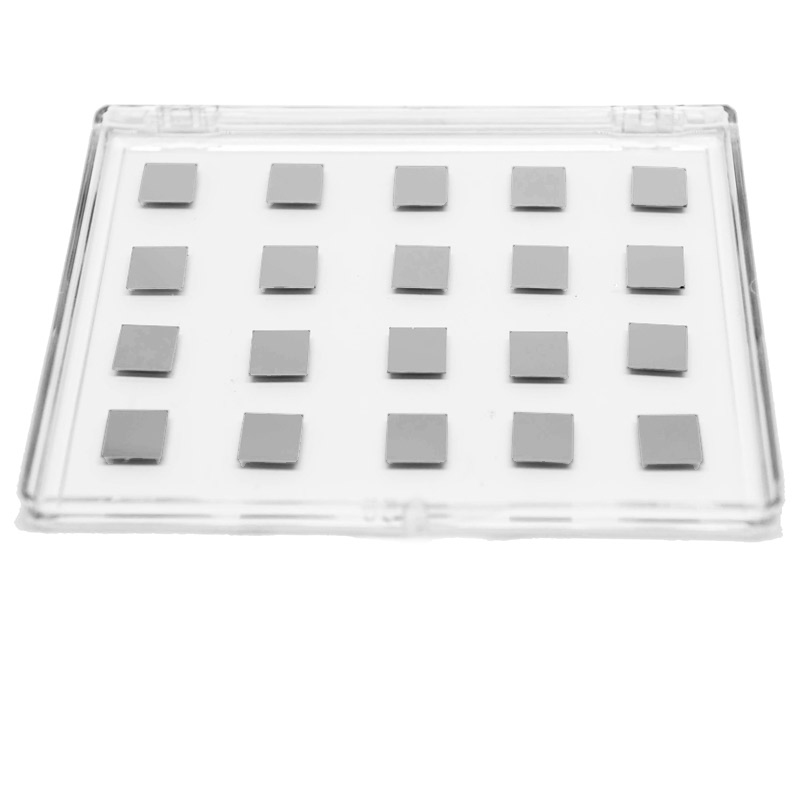

Platinum Coated Silicon Chips, 10 mm x 10mm | 1000 Å Pt | 20/pkg

$475.00 USD

  • Substrate: P/Boron, <100>,1-50 Ω·cm, 525 ± 20 µm thick, Prime Grade
  • Adhesion Layer: Titanium (50 Å)
  • Deposition Material: Platinum (99.99 %)
  • Platinum Thickness: 1000 Å
  • Die Size: 10 mm x 10 mm
  • Pack Size: 20/pkg
  • Coating Area: Single Side (polished)
SKU: SIPT-01000-Q20 Category:

Our platinum (Pt) material is 99.99 % pure and is deposited onto p-type <100> silicon (Prime grade) using electron beam evaporation. We use a thin 2-7 nm layer of titanium (99.99 %) as an adhesion promoter for all our platinum coatings. All substrates are pre-cleaned using an ion source for quality assurance.

At Angstrom Engineering we take pride in offering high quality Substrata products and services at affordable prices.

Questions? Please email us at or call our toll free line at 1 519.894.4441.
