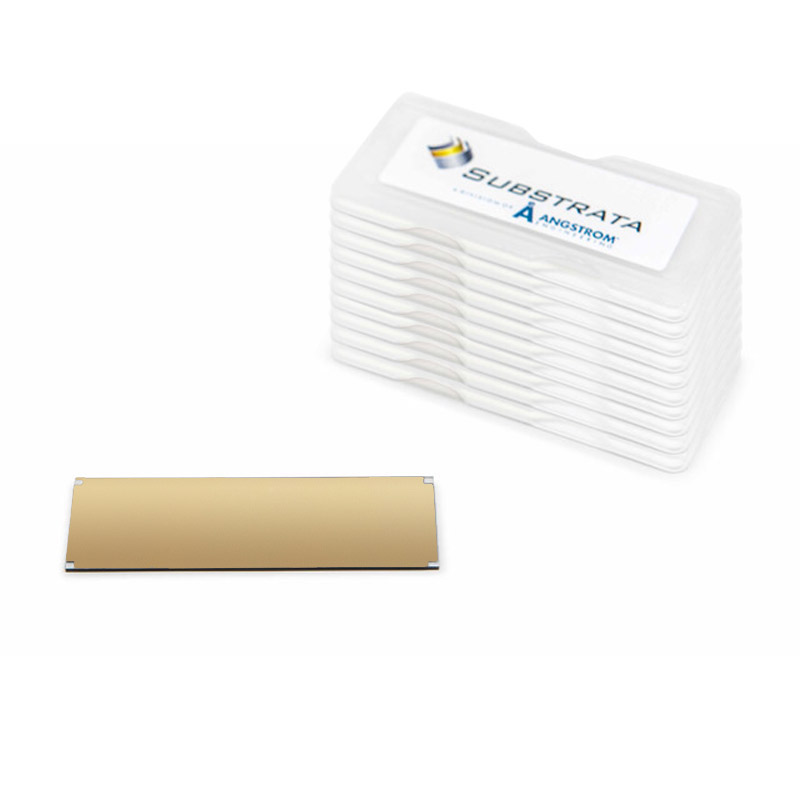

Titanium Nitride Coated Microscope Slides, 25 mm x 75 mm x 1 mm | 500 Å TiN | 10/pkg
$1,625.00 USD
- Substrate: BOROFLOAT® 33 (NEXTERION® Glass B) Glass Microscope Slide
- Dimensions: 25 mm W x 75 mm L x 1 mm H
- Adhesion Layer: None (available upon request)
- Deposition Material: Titanium Nitride, TiN (99.995 %)
- Titanium Nitride Thickness: 500 Å
- Pack Size: 10/pkg
- Coating Area: Single Side
Our titanium nitride (TiN) material is 99.995 % pure and is deposited onto borosilicate glass microscope slides (BOROFLOAT® 33) using reactive Bipolar High Power Impulse Magnetron Sputtering (Bi-HiPIMS) technology. All substrates are pre-cleaned using an ion source for quality assurance.
Glass Specifications:
• BOROFLOAT® 33 (NEXTERION® Glass B)
• Type: Borosilicate glass
• Dimensions: 25 mm W x 75 mm L x 1 mm H
• Tolerance: ± 0.1 mm
• Density: 2.25 g/cc
• Flatness: ≤ 50 µm
• Roughness: ≤ 1 nm RMS
Coating Specifications:
• Adhesion Layer: None
• Top Layer: 500 Å Titanium nitride (TiN)
• Purity: 99.995 %
• Sheet Resistance: 13-16 Ω/sq
• Resistivity: 65-80 µΩ·cm
• Roughness: < 3 nm RMS - View data
Coating Area: Single side - laser marked with a "G" to indicate coated side
At Angstrom Engineering we take pride in offering high quality Substrata products and services at affordable prices.
Questions? Please email us at coatings@angstromengineering.com or call our toll free line at 1 519.894.4441.
