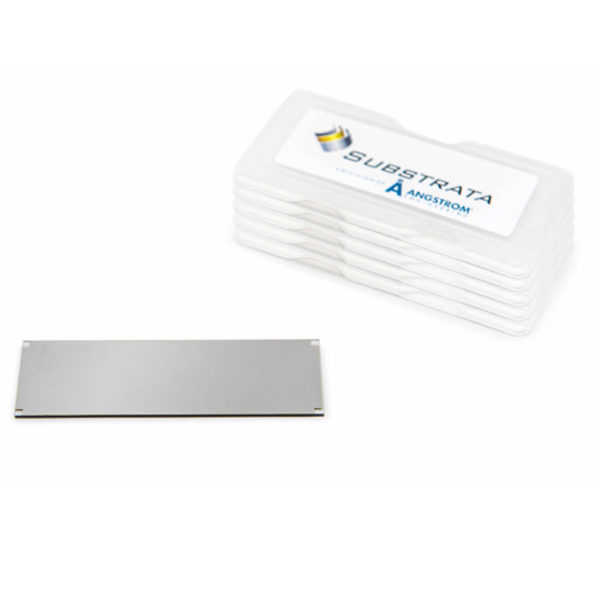

Aluminum Coated Microscope Slides, 25 mm x 75 mm x 1 mm | 1000 Å Al | 5/pkg

$280.00 USD

  • SubstrateBOROFLOAT® 33 (NEXTERION® Glass B) Glass Microscope Slide
  • Dimensions: 25 mm W x 75 mm L x 1 mm H
  • Adhesion Layer: None
  • Deposition Material: Aluminum (99.999 %)
  • Aluminum Thickness: 1000 Å
  • Pack Size: 5/pkg
  • Coating Area: Single Side
SKU: SSAL-01000-Q5 Category:

Our aluminum (Al) material is 99.999 % pure and is deposited onto borosilicate glass microscope slides (BOROFLOAT® 33) using electron beam evaporation. All substrates are pre-cleaned using an ion source for quality assurance.



Glass Specifications:
BOROFLOAT® 33 (NEXTERION® Glass B)
• Type: Borosilicate glass
• Dimensions: 25 mm W x 75 mm L x 1 mm H
• Tolerance: ± 0.1 mm
• Density: 2.25 g/cc
• Flatness: ≤ 50 µm
• Roughness: ≤ 1 nm RMS



Coating Specifications:
• Adhesion Layer: None - aluminum adhesion to glass is strong on it's own
• Top Layer: 1000 Å aluminum (Al)
• Purity: 99.999 %
• Optical Performance: View report (PDF)

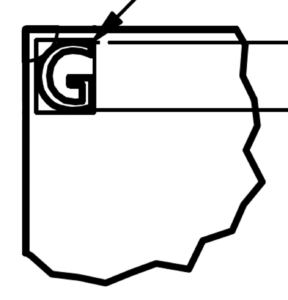

Coating Area: Single side - laser marked with a "G" to indicate coated side

At Angstrom Engineering we take pride in offering high quality Substrata products and services at affordable prices.

Questions? Please email us at coatings@angstromengineering.com or call our toll free line at 1 519.894.4441.
