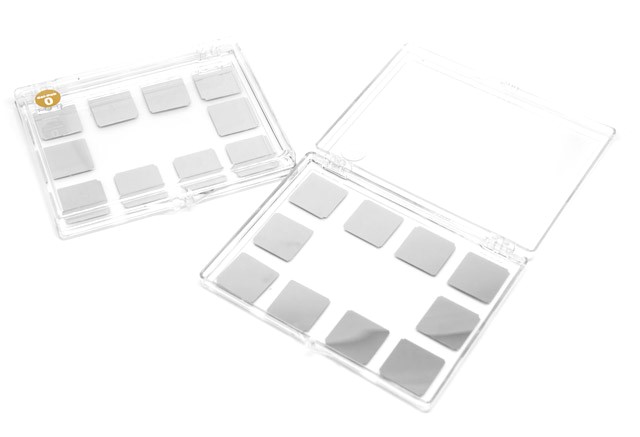

Platinum Coated Glass Coverslips, 22 mm x 22 mm Square | 1000 Å Pt | 20/pkg

$1,050.00 USD

  • Substrate: Epredia Borosilicate Glass Coverslip, 22 mm x 22 mm x 0.2 mm
  • Adhesion Layer: Titanium (50 Å)
  • Deposition Material: Platinum (99.99 %)
  • Platinum Thickness: 1000 Å
  • Pack Size: 20/pkg
  • Coating Area: Single Side
SKU: SCPT-01000-Q20 Category:

Our platinum (Pt) material is 99.99 % pure and is deposited onto Borosilicate glass coverslips (Epredia) using electron beam evaporation. We use a thin 2-7 nm layer of titanium (99.99 %) as an adhesion promoter for all our platinum coatings. All substrates are pre-cleaned using an ion source for quality assurance.



Glass Specifications:
Epredia Borosilicate Glass Coverslip, 22 mm x 22 mm x 0.2 mm
• Type: Borosilicate glass
• Dimensions: 22 mm x 22 mm x 0.2 mm thick



Coating Specifications:
• Adhesion Layer: 50 Å titanium (Ti)
• Top Layer: 1000 Å platinum (Pt)
• Purity: 99.99 %
• Optical Performance: View report (PDF)



At Angstrom Engineering we take pride in offering high quality Substrata products and services at affordable prices.

Questions? Please email us at coatings@angstromengineering.com or call our toll free line at 1 519.894.4441.

COVERSLIP REMOVAL INSTRUCTIONS:

For safely removing Substrata coverslip products from the Gel-Pak® packaging, please review the below video.

The glass coverslips are extremely delicate and must be handled with care to avoid cracking them. Patience is critical to this process.
